Applicable to culture various anaerobic bacteria. A multi-use model that combines functionality and operability.

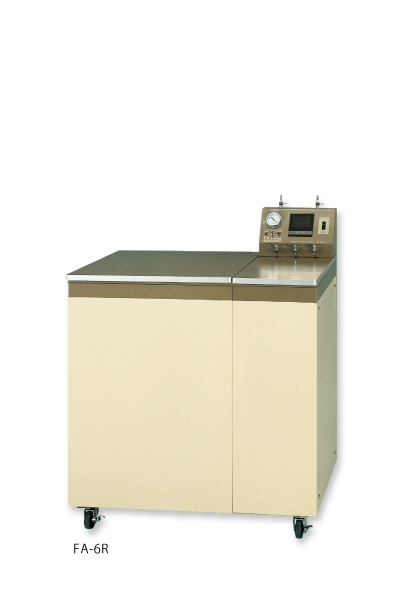

Anaerobic Bacteria Incubator
FA-6R
FA-6R
FA-6R
■ Features & Functions
Equipment that combines a gas displacement device and an incubator
The FA-6R is an anaerobic bacteria incubator designed and manufactured to easily culture anaerobic bacteria which are difficult to culture, in a simple operation, without carrying an anaerobic jar, under accurate anaerobic degree and constant temperature environment.
The FA-6R is an anaerobic bacteria incubator designed and manufactured to easily culture anaerobic bacteria which are difficult to culture, in a simple operation, without carrying an anaerobic jar, under accurate anaerobic degree and constant temperature environment.
It supports multiple anaerobic culture methods.
It supports the steel wool method, catalyst method, gas pack method. In addition, an anaerobic roll tube method and plate-in-bottle culture are also possible, because an anaerobic culture separation system or a two-way cock for anaerobic dilution and inoculator connection is installed.
It supports the steel wool method, catalyst method, gas pack method. In addition, an anaerobic roll tube method and plate-in-bottle culture are also possible, because an anaerobic culture separation system or a two-way cock for anaerobic dilution and inoculator connection is installed.
Powerful vacuum pump, microcomputer type temperature controller
As a powerful vacuum pump is installed, gas displacement (air → CO2 filling) is possible with one-touch operation. A microcomputer type temperature controller and special heater enable to maintain the stable culture conditions even in summer or winter.
As a powerful vacuum pump is installed, gas displacement (air → CO2 filling) is possible with one-touch operation. A microcomputer type temperature controller and special heater enable to maintain the stable culture conditions even in summer or winter.
6 anaerobic jars can be stored
It is possible to put in and out petri dishes even when six anaerobic jars are placed. (J-45: 15 pieces of 9 cm petri dishes + 1 piece of stainless steel petri dish). A large amount of culture can be performed easily without the need for the many instruments, personnel, and facilities required by conventional anaerobic culture.
It is possible to put in and out petri dishes even when six anaerobic jars are placed. (J-45: 15 pieces of 9 cm petri dishes + 1 piece of stainless steel petri dish). A large amount of culture can be performed easily without the need for the many instruments, personnel, and facilities required by conventional anaerobic culture.
A vertical opnening/closing type door that you can observe the anaerobic conditions.
Equipped with a silicone seal packing and one-touch door opening/closing mechanism, changes in steel wool can be observed.
Equipped with a silicone seal packing and one-touch door opening/closing mechanism, changes in steel wool can be observed.
■ A wide range of applications
| Field of application | ||||
| ・Pharmaceutical field: Production and testing of antibiotics. ・Food field: Anaerobic bacteria inspection such as Nuka Miso, salami sausage, retort food. ・Medical field: Clinical examination of infectious diseases and intestinal flora. In addition, it can be used for various research and inspection under anaerobic conditions. |
■ Anaerobic jar (Jar-20 / Jar-45) ※Sold separately
● A body is made of robust stainless steel. (A lid is made of transparent resin.)
● A rolled frame structure petri dish holder allows easy insertion and removal of petri dish.
● Since a lid is made of transparent resin, the anaerobic conditions can be discriminated by the color of steel wool.
● You can operate a jar without polluting clothes due to a complete seal lid packing and 2 - way cock.
● One petri dish holder and one alumite petri dish included.
● A rolled frame structure petri dish holder allows easy insertion and removal of petri dish.
● Since a lid is made of transparent resin, the anaerobic conditions can be discriminated by the color of steel wool.
● You can operate a jar without polluting clothes due to a complete seal lid packing and 2 - way cock.
● One petri dish holder and one alumite petri dish included.
| Type | J-20 | J-45 |  |
|---|---|---|---|
| Size (mm) | φ150 x D200 | φ150 x D450 | |
| Weight (Approximately) | 1.5 kg | 2.5 kg | |
| Storable number of 9 cm petri dishes | 6 culture petri dishes, 1 alumite petri dish | 15 culture petri dishes 1 alumite petri dish |
|
| Storable number of small size test tubes | 40 | 126 | |
| Specification | Tough one-touch opening and closing acrylic lid A complete seal butyl rubber lid packing With one stainless steel petri dish stand and one alumite petri dish. |
||
■ Option
| Wire basket for test tube stand | Steel wool | Pressure regulator |
|---|---|---|
 |
 |
 |
| φ135 X H180 mm One or two in φ135 X H180 mm jar. 32 middle size test tubes in a basket. |
Due to the dual pressure chamber type constant pressure regulator, the output pressure does not change even if the cylinder pressure varies. Output pressure gauge: 0 MPa - 0.2 MPa Input pressure gauge: 0 MPa - 20 MPa Connection screw is a reverse screw. |
■ Culture gas
| Gas cylinder for microaerobic bacteria | CO2 gas cylinder | Cylinder stand |
|---|---|---|
 |
||
| Mixing ratio: O2 5%, CO2 10%, N2 85%, Internal volume 47 L |
30kg, Internal volume 40 L with liquefied CO2 gas | W460 x D460 H1150 mm with casters, Cylinder: 40 L - 47 L x 1 |
■ Specifications
| Product name | Anaerobic Bacteria Incubator FA | |||||
|---|---|---|---|---|---|---|
| Model | FA-6R | |||||
| Control method | PID control | |||||
| Storable number of anaerobic jars | 6 | |||||
| Storable number of 9cm petri dishes | 90 | |||||
| Storable number of small size test tubes | 756 | |||||
| Culture temperature setting range | 10℃ - 55℃ variable (Lower limit of control is room temperature + 5℃.) | |||||
| Safety devices | Earth leakage breaker, Thermal fuse, Detection of temperature sensor wire disconnection, Over-temperature prevention device | |||||
| Interior material | Stainless steel (SUS304) | |||||
| Supplied accessories | CO2 cylinder connection hose | |||||
| Outside dimensions | 900 x D710 x H1150 mm | |||||
| Weight (Approximately) | 107 kg | |||||
| Power supply | AC100V 0.95kW (9.5A) | |||||
| Power connection |  アース付（3ｍ） | |||||
※Specifications and appearance are subject to change without notice due to continuous product improvement.
