Highly Accelerated Stress Test
Chamber (HAST Chamber)
PC-R9/R9D series
Chamber (HAST Chamber)
PC-R9/R9D series
line up：
PC-304R9 / PC-422R9
PC-304R9D / PC-422R9D
■ Features & Functions
Control method and exhaust mode can be selected according to the test purpose.
Emphasizing the correlation with many test conditions conventionally performed, two control methods (saturation and unsaturation) and three exhaust modes (slow cooling with humidity maintained mode, cooling with moisture kept mode and rapid exhaust mode) are installed in this product. You can select a control mode and exhaust mode from them according to the test purpose.
There are three kinds of operation modes.
In addition to a fixed-value operation mode, and a programmed operation mode that allows registration of total 1500 steps within maximum 150 operation patterns,it is equipped with a cleaning operation mode.
Emphasizing the correlation with many test conditions conventionally performed, two control methods (saturation and unsaturation) and three exhaust modes (slow cooling with humidity maintained mode, cooling with moisture kept mode and rapid exhaust mode) are installed in this product. You can select a control mode and exhaust mode from them according to the test purpose.
There are three kinds of operation modes.
In addition to a fixed-value operation mode, and a programmed operation mode that allows registration of total 1500 steps within maximum 150 operation patterns,it is equipped with a cleaning operation mode.
Color touch panel
A color touch panel that integrates various button operations and displays of numerical values and graphs, and alarm messages is installed.
A color touch panel that integrates various button operations and displays of numerical values and graphs, and alarm messages is installed.
Special concern to the chamber
・Round-shape and dual vessel structure that can exhibit excellent performance
The PC-R9/R9D series HAST chambers adopt a dual vessel structure in which the test chamber and the steam generator are independent from each other. The dual vessel structure can perform more stable test evaluation compared to the single vessel structure, because it has less mutual temperature influence between a test chamber (dry bulb) and a steam generator (wet bulb) while making the best use of the effective area of the test chamber. Each vessel uses a round shape vessel that has reliability in strength and temperature distribution.
・Stain-resistant chamber
Since the chamber is made of stainless steel (SUS316L) which has been subjected to electrolytic polishing treatment to give smoothness and gloss to the chamber surface, the corrosion resistance is improved, and easy to prevent, remove, and clean up stains. Therefore, influence by chamber contamination can be minimized.
・Round-shape and dual vessel structure that can exhibit excellent performance
The PC-R9/R9D series HAST chambers adopt a dual vessel structure in which the test chamber and the steam generator are independent from each other. The dual vessel structure can perform more stable test evaluation compared to the single vessel structure, because it has less mutual temperature influence between a test chamber (dry bulb) and a steam generator (wet bulb) while making the best use of the effective area of the test chamber. Each vessel uses a round shape vessel that has reliability in strength and temperature distribution.・Stain-resistant chamber
Since the chamber is made of stainless steel (SUS316L) which has been subjected to electrolytic polishing treatment to give smoothness and gloss to the chamber surface, the corrosion resistance is improved, and easy to prevent, remove, and clean up stains. Therefore, influence by chamber contamination can be minimized.
 |  |
| Electrolytic polishing | Conventional product |
Having both safety and functionality
・Door lock by electric clamp system
An electric clamp system with high safety performance is employed for door locking. The door is easily opened/closed simply by pressing a button. An interlock mechanism and door opening/closing confirmation device are also equipped.
・Slide tray
A sample table (tray) on which samples are placed is a sliding type in which the tray is drawn out of the chamber by pulling the door to the front.An operator can safely and easily put in and out samples without putting hands into the chamber that becomes high temperature after a test.
・Easy connection to voltage application terminals
The voltage application terminals are arranged on the inner face of the door. Connection work with specimens at a voltage application test can be executed outside of the chamber. (The number of voltage application terminals is 20 as standard.)
PC-304R9 / R9D: Extendable number of terminals is up to 60 in total. (Up to 40 optional terminals can be added.)
PC-422R9 / R9D: Extendable number of terminals is up to 100 in total. (Up to 80 optional terminals can be added.)
・Door lock by electric clamp system
An electric clamp system with high safety performance is employed for door locking. The door is easily opened/closed simply by pressing a button. An interlock mechanism and door opening/closing confirmation device are also equipped.
・Slide tray
A sample table (tray) on which samples are placed is a sliding type in which the tray is drawn out of the chamber by pulling the door to the front.An operator can safely and easily put in and out samples without putting hands into the chamber that becomes high temperature after a test.
・Easy connection to voltage application terminals
The voltage application terminals are arranged on the inner face of the door. Connection work with specimens at a voltage application test can be executed outside of the chamber. (The number of voltage application terminals is 20 as standard.)
PC-304R9 / R9D: Extendable number of terminals is up to 60 in total. (Up to 40 optional terminals can be added.)
PC-422R9 / R9D: Extendable number of terminals is up to 100 in total. (Up to 80 optional terminals can be added.)
Remote operation using special software
The chambers can be operated from an external terminal using special software. It is possible to monitor, adjust, and operate without being restricted by conditions such as the installation location and the number of installed machines.
The chambers can be operated from an external terminal using special software. It is possible to monitor, adjust, and operate without being restricted by conditions such as the installation location and the number of installed machines.
USB connector for data recording
The operation record for temperature, humidity and pressure can be stored in an external memory such as USB memory. Even if there is no optional device such as a recorder, it is possible to keep an operation record.
The operation record for temperature, humidity and pressure can be stored in an external memory such as USB memory. Even if there is no optional device such as a recorder, it is possible to keep an operation record.
Materials test (Option)
Communication interface allows centralized monitoring and centralized control
Windows is a registered trademark of Microsoft Corporation.
Windows is a registered trademark of Microsoft Corporation.
Automatic cleaning mode
In addition to a fixed-value operation mode and programmed operation mode, it is equipped with a cleaning operation mode. You can perform automatic cleaning under conditions effective for cleaning the inside of the chamber.
In addition to a fixed-value operation mode and programmed operation mode, it is equipped with a cleaning operation mode. You can perform automatic cleaning under conditions effective for cleaning the inside of the chamber.
Cooling tank for drainage
Hot water after a test is cooled in the cooling tank and discharged safely. The heat-resistant PVC pipe (equivalent to JISK6776) can be used for drainage piping.
Hot water after a test is cooled in the cooling tank and discharged safely. The heat-resistant PVC pipe (equivalent to JISK6776) can be used for drainage piping.
Programmable auto-start function
The programmable auto-start function that can specify the start time according to the desired end time is provided as standard. (Date and time setting)
The programmable auto-start function that can specify the start time according to the desired end time is provided as standard. (Date and time setting)
EU model available＊
EU Model:Products compliant with European Standards (ENs)
EU Model:Products compliant with European Standards (ENs)
Required utilities
・Power supply: Refer to the specifications. Household outlets are not recommended.
・Drainage: Heat-resistant PVC pipe (equivalent to JISK6776) or steel pipe is recommended.
・Power supply: Refer to the specifications. Household outlets are not recommended.
・Drainage: Heat-resistant PVC pipe (equivalent to JISK6776) or steel pipe is recommended.
■ Easy to use with color touch panel
| MENU screen | MONITOR screen |
|---|---|
 |  |
| Monitor, graph display, mode setting, program setting, test name entry, and other menus are displayed. | Specialized in visibility, the operation state and various figures are displayed in a large size. (Pressure indication is equipped as standard.) |
| TREND GRAPH screen | MODE SET screen |
|---|---|
 |  |
| The set program pattern or progress state of a program can be checked on a graph. There is a scaling function that changes the temperature and time scale to make the program pattern easy to see. | Operation mode, execution mode, operation selection, STD / HUM, Exhaust mode can be set. Touching the key changes the screen to the detail setting screen of each item. |
| VARIOUS ALARM screens | |
|---|---|
 [ TROUBLE MONITOR screen ] Various alarms are displayed individually. When an alarm is activated, it is displayed in red along with the alarm occurrence date and time. |
 [ Alarm message screen (Troubleshooting) ] The causes and measures for generated alarms are displayed on the message. You can restore the state by operating according to the message. |
■ Two control methods
 |  |
| [ HUM / Unsaturation control ] The unsaturation control mode prevents dew condensation and can set the humidity at any value between 65%RH and 100%RH. In addition, temperature gradients at temperature rise and fall can be set for both fixed value operation and programmed operation, and humidity control is also possible. This mode meets the test conditions defined in IEC 60068-2-66 and JIS C 60068-2-66. | [ STD / Saturation control ] This is a 100%RH saturation test mode, and humidity is maintained at 100%RH from a start. This mode is also called as a wet saturation test, and dew condensation occurs on the specimens. A test that corresponds to the conventional saturated type pressure cooker can be carried out. |
■ Three exhaust modes
| 1.Slow cooling with humidity maintained mode After completion of a test, the test chamber is cooled down slowly with humidity maintained until the chamber temperature becomes 100℃ and the chamber pressure drops to 0MPa. This mode can protect specimens from pressure stress and drying that are caused by rapid exhaust. The high accurate test that minimizes the influence on the specimens caused by taking them out on the way can be performed. |  |
| 2.Cooling with moisture kept mode After completion of a test, exhaust is not carried out until the chamber pressure reaches 0MPa, and air cooling with a fan minimizes pressure stress and drying. Cooling in a short time compared to the slow cooling with humidity maintained mode is possible. |  |
| 3.Quick exhaust mode Immediately after completion of a test, the exhaust valve is opened to carry out exhaust and hot water drainage in a short time. The time from the end of a test to the removal of specimens is the shortest in all modes. This mode is suitable for specimens that are not affected by pressure stress. Data is compatible with the data of a saturated type pressure cooker. |  |

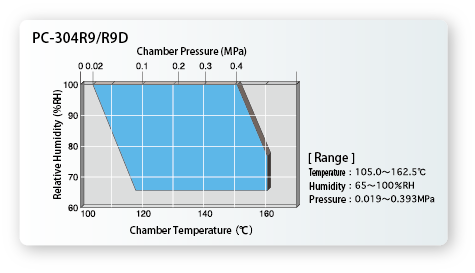

■ Temperature-humidity control range during testing process
 |  |
■ Options for upgrading a system
| Heat dissipation | High voltage | Terminals / Wires for Electrochemical (Ion) Migration |
Titanium heater (DRY) | Special request |
|---|---|---|---|---|
50 watts |
1000 volts and more | 128 P | long life | ASK |
| Communication software HAST-NET | Recorder | Viewing window | Test stand | |
|---|---|---|---|---|
 |
 |
 |
 |
 |
| Up to 16 HAST chambers can be controlled and monitored from a single PC. | Recorder for temperature, humidity, pressure | Paperless recorder for temperature and humidity | Window diameter: φ50 mm with interior chamber light | We undertake custom-made products. |
| Basket | Three-stage shelf | Terminal protection cover |
|---|---|---|
 |
 |
 |
| W172 x D346 x H30 mm (PC-304R9/R9D) W252 x D410 x H30 mm (PC-422R9/R9D) |
Frame size W174 x D350 x H135 mm (PC-304R9/R9D) W260 x D412 x H215 mm (PC-422R9/R9D) |
For PC-R9D only (each 1 for top and bottom) |
■ Specifications
| HAST Chamber ( Highly Accelerated Stress Test Chamber ) | |||||
|---|---|---|---|---|---|
| Model | PC-304R9 | PC-422R9 | PC-304R9D | PC-422R9D | |
| Outside dimensions | W710 x D950 x H1620 mm | W900 x D1100 x H1780 mm | |||
| Test chamber size | φ300 x D522 mm (34.5 L) | φ420 x D657 mm (84.4 L) | φ300 x D522 mm per chamber (34.5 L per chamber) | φ420 x D657 mm per chamber (84.4 L per chamber) | |
| Effective chamber size | φ220 x D350 mm (12 L) | φ340 x D475 mm (40 L) | φ220 x D350 mm per chamber (12 L per chamber) | φ340 x D475 mm per chamber (40 L per chamber) | |
| Weight (Approximately) | 260 kg | 280 kg | 475 kg | ||
| Power supply | AC220V / 230V / 240V, 50Hz / 60Hz (Single phase) | ||||
| Required power supply facility | 2.3kW | 3.0kW | 2.3kW (per chamber) | 3.0kW (per chamber) | |
| Heater capacity | Steam generator | 1.5kW | 1.5kW | ||
| Test chamber | 0.6kW | 1.3kW | 0.6kW (per chamber) | 1.3kW (per chamber) | |
| Temperature control method | PID control, SCR drive | ||||
| Test mode | HUM: Unsaturated test mode / STD: saturated test mode | ||||
| Operation mode | Fixed-value operation mode / Programmed operation mode (150 patterns, up to 1500 steps) | ||||
| Temperature | Working range | 105.0℃ - 151.4℃ (at 100%RH) | 105.0℃ - 133.3℃ (at 100%RH) | 105.0℃ - 151.4℃ (at 100%RH) | 105.0℃ - 133.3℃ (at 100%RH) |
| 110.0℃ - 157.5℃ (at 85%RH) | 105.0℃ - 140.0℃ (at 85%RH) | 110.0℃ - 157.5℃ (at 85%RH) | 110.0℃ - 140.0℃ (at 85%RH) | ||
| 118.0℃ - 162.5℃ (at 65%RH) | 118.0℃ - 150.0℃ (at 65%RH) | 118.0℃ - 162.5℃ (at 65%RH) | 118.0℃ - 150.0℃ (at 65%RH) | ||
| Control accuracy | ±0.5℃ | ||||
| Distribution accuracy | ±0.5℃ (at 100%RH) | ||||
| ±1.0℃ (at 85%RH) | |||||
| Humidity | Working range | 65%RH - 100%RH | |||
| Control accuracy | ±3%RH (at 85%RH) | ||||
| Pressure | Working range | 0.019MPa - 0.393MPa | 0.019MPa - 0.208MPa | 0.019MPa - 0.393MPa | 0.019MPa - 0.208MPa |
| Pressure vessel category | Small sized pressure vessel | ||||
| Time | Working range | Continuous operation up to 500 hours is possible. | |||
| Setting range | 1 min - 999 h 59 min | ||||
| Temporary power failure compensation | Approximately 4 seconds | ||||
| Temperature rise time | About 70 min (time to 120℃ 85%RH from room temperature) | ||||
| Exhaust mode | EXHT MODE selector switch MODE1: Slow cooling with humidity maintained mode MODE2: Cooling with moisture kept mode MODE3: Rapid exhaust mode | ||||
| Voltage application terminal | 20 (Applied voltage:125V, within 30W in total) ※Number of terminals can be increased as option. | ||||
| Time signal terminal | Number of time signal terminals: 4 | ||||
| Chamber material | Stainless steel (SUS316L, electrolytic polishing treatment) | ||||
| Water supply method | A water supply tank is built in, and initial water supply to the steam generator is automatically carried out. | ||||
| Door open-close method | Drawer door structure, Electric clamp method | ||||
| Power connection |  Ring terminal | ||||
| Safety devices and alarm functions | Pressure safety valve, Over-pressure prevention device, Overheat prevention device, Low water cut off device, Water supply abnormality detection device, Over-current and earth leakage breaker, Circuit breaker for heater,Fuse, Thermal fuse, Door safety system (Door lock check mechanism during operation, Door open / close check mechanism), Protection for settings, Hot water drainage treatment system, Self-diagnosis function of sequence controller, Negative pressure prevention system | ||||
| Supplied accessories |
Lid gasket x 2, Drainage hose x 2, Water supply / drainage hose x 1, Auxiliary water supply tank x 1, Power supply switch key x 2 (4 for R9D), Power supply cord x 1 (2 for R9D), Operation Manual x 1 | ||||
※The above outside dimensions do not include the size of protrusions.
※The performance values were obtained when ambient temperature was normal and the test chamber was empty.
※Specifications and appearance are subject to change without notice due to continuous product improvement.
